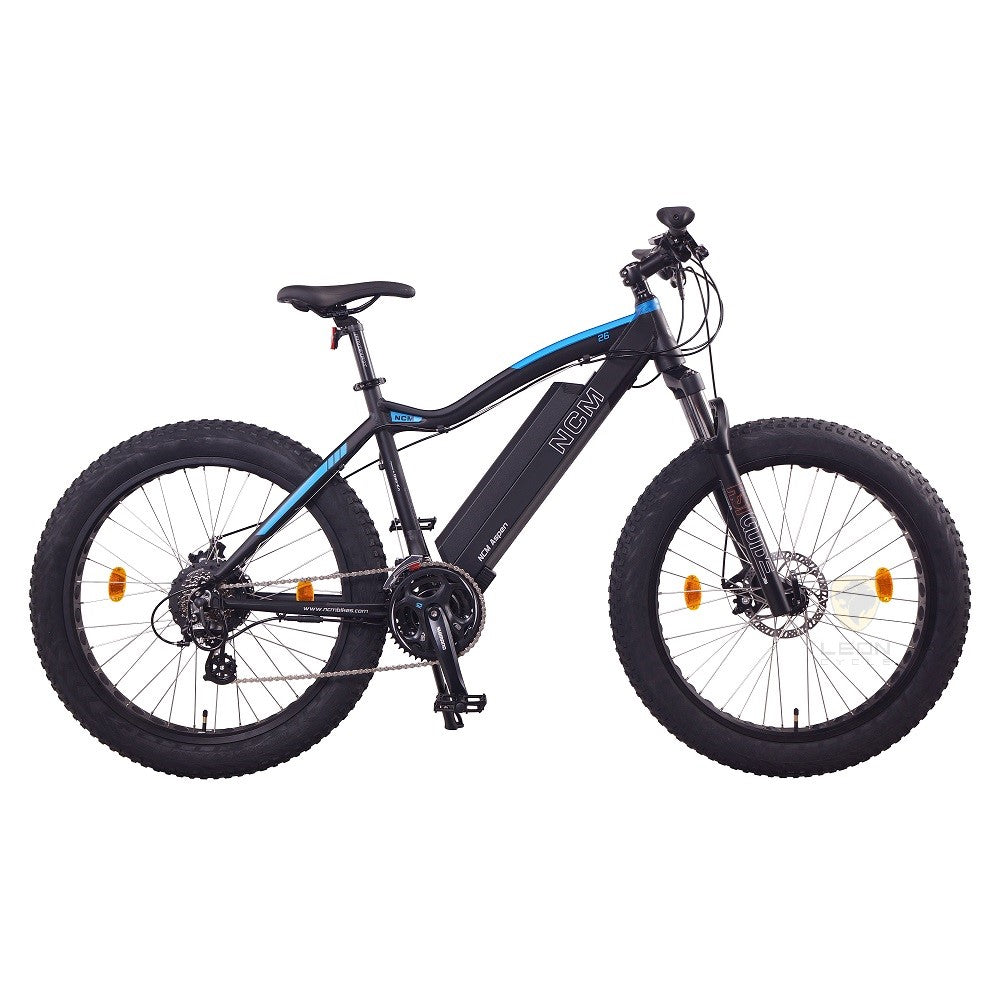

NCM Aspen

The NCM Aspen is a super-cool and robust fat tyre eBike, that allows people to ride on the sand or in the snow, or anywhere they choose, with confidence from the stability of wide tyres .

The featured and patented DAS-KIT technology gives riders 6 levels of assisted pedalling, to meet your needs across various terrains, with or without your exercise.

Now in stock and available for Test Rides on a hilly cycling track in Nunawading.

BIKE COMPONENTS

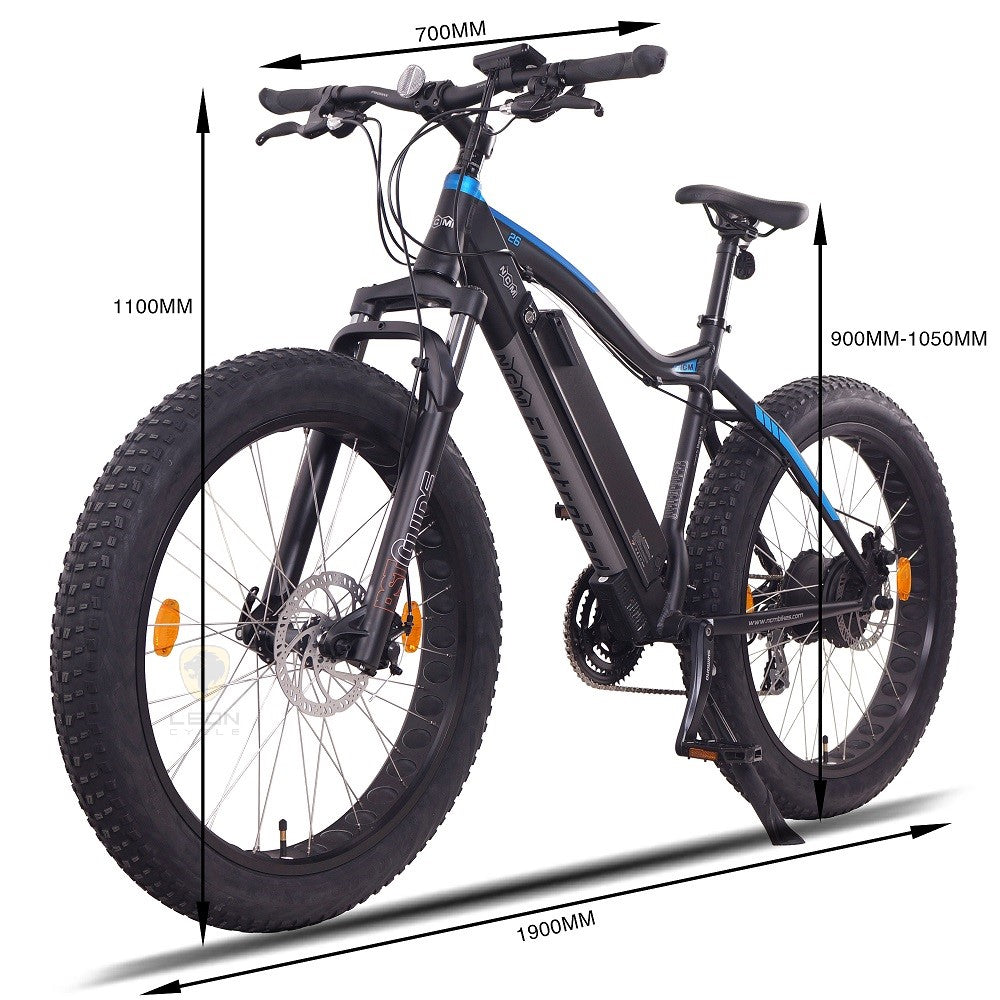

Frame: Alu. 6061, 26"*18.9 inches

Suspension Fork: RST, Guid-T-26, Alu.

Brake: Disc Brakes

Freewheel: 7 Speed, 14-28T

Tire: 26"*4.0

Saddle: VELO, VL-3410

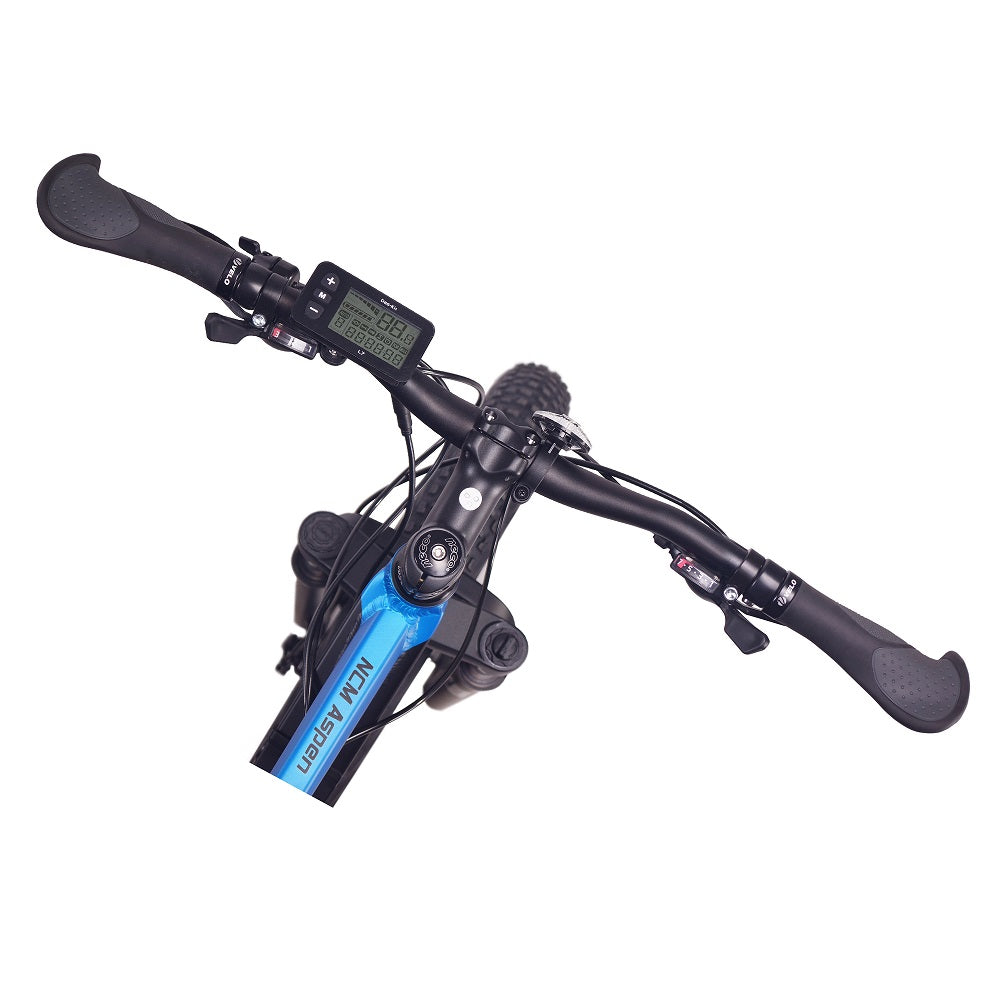

Stem: Promax. Alu.MA-471, Ext 90mm

Crank: Shimano, Acrea, 28/38/48T

Shifter: Shimano, Altus, F: M315-L, 3-Speed; R: M315-7R, 7-Speed

Front Derailleur: Shimano, Altus, M310

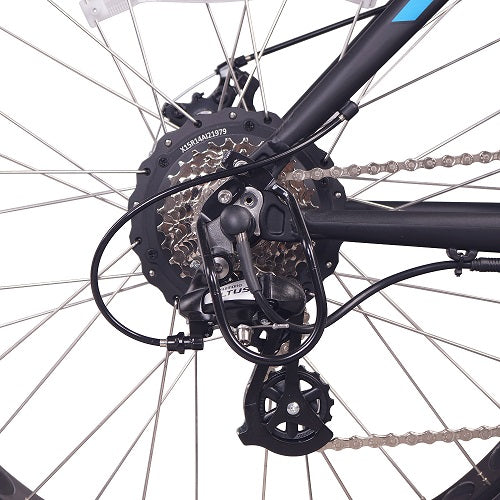

Rear Derailleur: Shimano,  Altus RD-M310

Chain: KMC, Z51

ELECTRIC COMPONENTS

Battery: Das-Kit, i5-4813, 48V 13AH, 624WH

Motor: Das-Kit, X15-fat, Rear drive motor, 48V 250W, 25KM/H

Controller: Das-Kit, CT5-I5, 48V 18A

Charger: Das-Kit, 48V2A

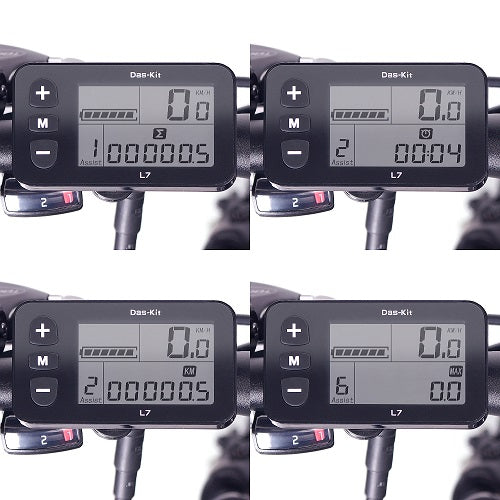

Display: Das-Kit, L7

Front Light: Cateye, Front reflector

Rear Light: Cateye, Rear reflector

WEIGHT

Net Weight (with battery): 30.0kg

Battery Weight: 3.5kg

Max Load (driver+bike): 125kg
